How to Build a Better RAG Pipeline

Transforming your enterprise data into intelligent, searchable knowledge with modern RAG architecture with Needle

May 25 • Needle

Introduction

Large language models have revolutionized how we work, but they face a fundamental limitation: they don't know your data. While ChatGPT and Claude excel at general tasks, they can't access your company's internal documents, customer conversations, or proprietary knowledge bases. This is where Retrieval Augmented Generation (RAG) becomes essential.

The Challenge: LLMs Don't Know Your Enterprise Data

Imagine you're troubleshooting a customer issue that's similar to one resolved six months ago. An LLM can provide general guidance, but it has no awareness of your specific solution, the customer's history, or your internal processes. Without access to this contextual information, even the most advanced AI becomes just another search engine.

This limitation exists across virtually all enterprise AI applications. Your LLM needs to understand:

• Internal documentation and wikis

• Customer support conversations

• Project management data

• CRM records

• Technical specifications

• Compliance documents

What Makes a Great RAG Pipeline?

The RAG Process Simplified

RAG works by creating a bridge between your LLM and your proprietary data. When a user asks a question, the system:

1. Searches your knowledge base for relevant information

2. Retrieves the most contextually similar content

3. Augments the LLM prompt with this retrieved context

4. Generates a response that combines the LLM's reasoning with your specific data

The Power of Unstructured Data

Unlike traditional databases with structured schemas, enterprise knowledge often lives in unstructured formats:

• PDF documents and presentations

• Email conversations

• Slack messages and Teams chats

• Support tickets

• Meeting transcripts

• Code repositories

This unstructured nature makes traditional database queries ineffective. You can't write SQL to find "the 5 most similar customer issues" or "documents related to our Q3 strategy."

Retrieval Augmented Generation Pipelines: A Step-by-Step Breakdown

A RAG pipeline follows a standard sequence of steps to convert unstructured data into an optimized vector index in your vector database. Let's examine the end-to-end flow of a complete RAG pipeline:

Ingestion

To build an effective RAG pipeline, you must first understand the sources of domain-specific knowledge you want to ingest. This could include knowledge bases, internal wikis, or custom datasets from SaaS platforms like Slack, Jira, or HubSpot.

For enterprise RAG applications focused on tasks like customer support or project management, it's crucial to identify the source documents that contain the most relevant information for your anticipated user queries. Needle simplifies this by providing direct integrations with dozens of enterprise tools, eliminating the need for complex data migration.

Extraction

Many unstructured data sources require sophisticated processing to retrieve useful natural language text. This extraction step is often more complex than it appears.

PDF documents are particularly challenging to convert into useful text. While basic open-source libraries work for simple cases, complex PDFs with tables, images, and multi-column layouts require more advanced solutions. Enterprise documents often contain crucial information embedded in charts, diagrams, and formatted sections that basic extraction tools miss.

Needle's extraction engine handles these complexities automatically, using advanced techniques to preserve document structure and meaning. Whether processing legal contracts, technical specifications, or presentation slides, our system ensures that the extracted content maintains the context that makes it valuable for retrieval.

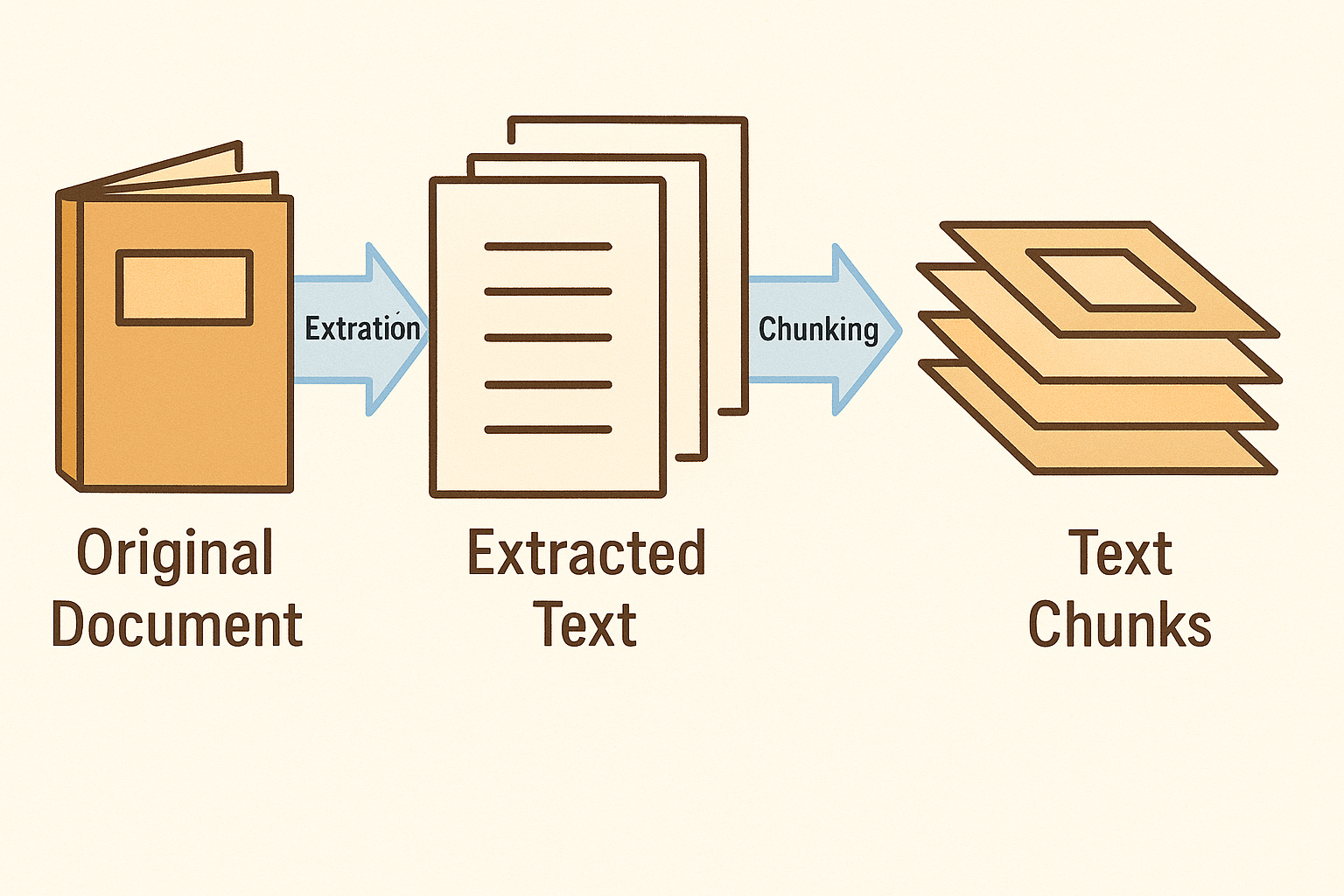

Chunking and Embedding

Chunking and embedding are two distinct but closely related processes that determine your RAG system's effectiveness.

Chunking Strategy The chunking process converts extracted content into appropriately sized text segments. This is a critical decision point - chunks that are too large lose precision in retrieval, while chunks that are too small lose important context. The text chunks created here become the context supplied to your LLM at runtime.

Needle employs intelligent chunking strategies that consider document structure, semantic boundaries, and content type. For example, code documentation is chunked differently than customer support conversations.

Embedding Generation The embedding step transforms text chunks into high-dimensional vectors using specialized models. These vectors enable semantic search - finding content based on meaning rather than keyword matching.

Modern embedding models like OpenAI's text-embedding-3-large or Mistral's embedding models provide general-purpose capabilities. However, some applications benefit from domain-specific fine-tuning for specialized fields like finance, healthcare, or legal.

Persistence

Vectors produced by embedding models have a fixed number of dimensions. When creating your search index, you define the dimensional structure, and all subsequent data must match this specification.

Needle handles vector storage optimization automatically, ensuring efficient indexing and search performance as your knowledge base scales. Our system manages the technical complexities of vector database configuration, allowing you to focus on your use cases.

Refreshing

Perhaps the most critical aspect of production RAG systems is keeping vector data synchronized with source systems. Without proper refresh mechanisms, your RAG application will eventually provide outdated information, leading to incorrect responses and user frustration.

Needle provides real-time synchronization across all connected systems. When a Jira ticket is updated, a Slack message is posted, or a document is modified in Google Drive, these changes are immediately reflected in search results. This ensures your AI applications always work with current, accurate information.

Building Production-Ready RAG Pipelines

Enterprise-Grade Considerations

Reliability & Error Handling Production RAG systems must handle API failures, embedding model timeouts, and vector database outages gracefully. Implement retry logic, exponential backoffs, and dead letter queues to ensure no data is lost.

Security & Compliance Enterprise data requires proper access controls, encryption, and audit trails. Your RAG pipeline must respect existing permissions and compliance requirements.

Performance & Scale As your knowledge base grows, search performance becomes critical. Optimize for both ingestion speed and query response times while managing computational costs.

Needle's Approach to RAG Excellence

Seamless Integration

Needle connects directly to your existing tools - Slack, Jira, HubSpot, Zendesk, Google Drive, and more. No complex ETL processes or data migration required.

Intelligent Search

Our semantic search understands context and intent, not just keywords. Ask "How did we handle the API outage last quarter?" and get relevant information from across all your connected systems.

Real-time Synchronization

Changes to your source systems are reflected immediately in search results. When a Jira ticket is updated or a new document is shared, Needle's knowledge base stays current.

Enterprise Security

Built for enterprise requirements with proper access controls, audit logging, and compliance features. Your data stays secure while becoming more accessible.

Getting Started with Better RAG

The key to RAG success isn't just having the right technology - it's having the right approach:

1. Start with your most valuable data sources - Focus on the systems your team uses daily

2. Define clear use cases - Customer support, onboarding, project management, etc.

3. Measure and iterate - Track search relevance and user satisfaction

4. Scale gradually - Add more data sources and use cases as you prove value

Conclusion

Building effective RAG pipelines requires more than just connecting an LLM to a vector database. It demands thoughtful architecture, robust engineering, and deep understanding of how knowledge flows through your organization.

With Needle, you can transform your enterprise data into an intelligent, searchable knowledge base that makes your AI applications truly powerful. Instead of building RAG infrastructure from scratch, focus on the use cases that will drive real business value.

Ready to unlock the full potential of your enterprise data? Start with Needle today and see how easy it can be to build world-class RAG applications.
